EO Research: April 12th, 2024

Measuring smoke, tracking tree canopy, and using hyperspectral data for ammonia monitoring

Every Friday, I summarize and simplify three interesting papers. In this week’s update, we look at the following topics:

1. Measuring smoke exposure from prescribed fires

2. Tracking tree canopy across urban environments

3. Measuring ammonia using hyperspectral data

If this is your first time reading Earthbound, and you want more (free and open) research summaries, feel free to subscribe to this newsletter:

---

Measuring smoke exposure from prescribed fires

The health impacts of wildfires have been studied pretty consistently (especially over the last couple of years) but how much smoke exposure do we face from prescribed fires?

• If you’re unfamiliar with prescribed fires, they are fires that are set on purpose for multiple purposes. A few examples include:

  • decreasing wildfire risk

  • increasing nutrition for livestock

  • control invasive grass species

  • maintain ecosystem diversity.

• In this paper, the authors explore how much PM2.5 levels change as a result of prescribed fires in the region. Here is a summary of some data they used:

  • Ground-level measurements were collected from monitoring stations and Purple Air monitors

  • The extent of burning was captured using the MODIS burned area product

  • A product called NOAA Hazard Mapping System was used to identify smoke plumes and hotpots

  • The MODIS/Terra + Aqua Direct Broadcast Burned Area Monthly product was used to assess the timing of the prescribed burning

• Unsurprisingly, they found that prescribed fires did increase PM2.5 levels in the study area.

Smoke days across the study area (Sablan et al., 2024)

---

Measuring urban canopy

There are few downsides to having healthy trees dispersed throughout cities. But how can we track what exists today, and how it changes over time?

• In this study, the urban canopy across a region of Hong Kong is measured using a novel method that utilizes multiple EO datasets and GIS variables.

• First, they tested four different segmentation algorithms on the WorldView-2 satellite images to segment the canopy across the study area. From this exercise, they created a canopy distribution map.

• GIS data of different urban predictors are used to segment the tree canopy into different urban habitats

• Four years of Sentinel-2 data were used to develop vegetation indices that are indicative of tree growth. These include:

  • fluorescence correction vegetation index (FCVI)

  • soil adjusted total vegetation index (SATVI)

  • the normalized difference phenology index (NDPI)

• These were used to train a model that can associate canopy features with tree species

• They also calculated the changes in these indices for different tree species

• One of the takeaways in the paper is that the location of trees (i.e. which environment they’re in) can impact the amount of care it requires from the responsible body.



  The study area is classified into urban habitats (Guo et. al, 2024)

  ---

Measuring ammonia using hyperspectral data

Ammonia is difficult to measure with publicly available earth observation data, especially over industrial sites where the plumes cannot be effectively captured using multispectral instruments with a coarse spatial resolution. How effective is hyperspectral?

• To test the effectiveness of hyperspectral, they flew two sensors over industrial sites in Germany

  • The first was called Telops Hyper-Cam LW and it used longwave infrared to target ammonia measurements at a 4 m resolution

  • The second was a spectrometer that measured nitrogen dioxide (another pollutant) measurements in the UV–Vis at a spatial resolution of 180 m

• The used a Guassian plume model and other algorithms to derive vertical column densities of ammonia and then to derive point source emissions from those columns

• The ammonia concentrations they calculated were five times higher than those reported to the European Pollutant Release and Transfer Register for that location

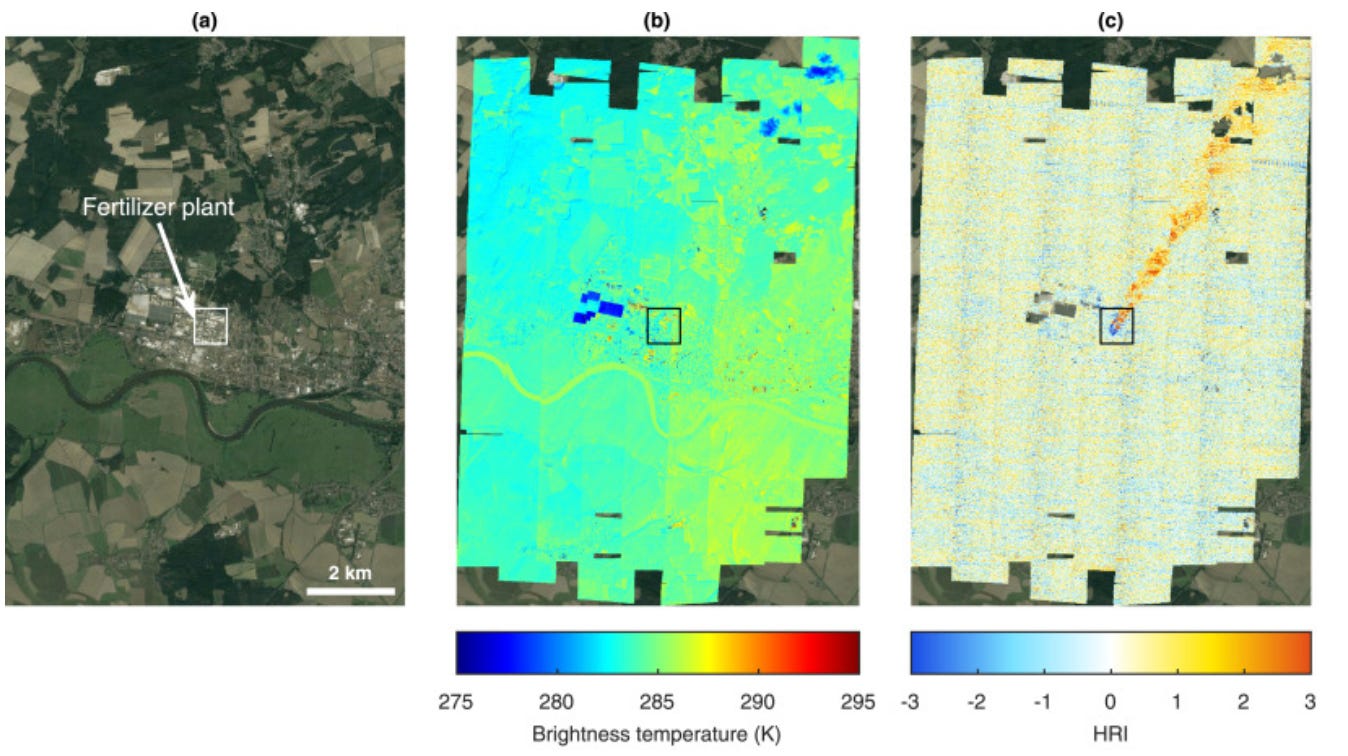

• In the image below, you can see an ammonia plume from the fertilizer plant where the study took place

Measured variables over the site (Nappen et. al, 2023).

---
